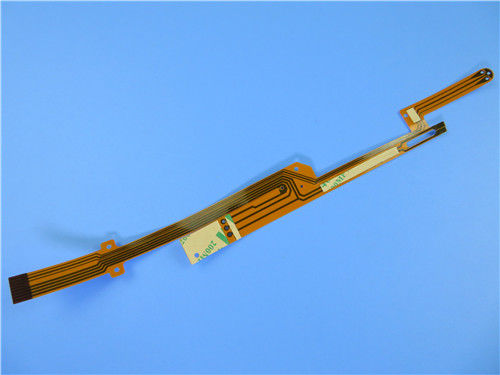

94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas

94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas
94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas

큰 이미지 :  94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Bicheng
인증: UL, ISO9001, IATF16949
모델 번호: BIC-280.V1.0
결제 및 배송 조건:
최소 주문 수량: 1 PC
가격: USD9.99-99.99
포장 세부 사항: 진공 bags+Cartons
배달 시간: 8-9 작업 일
지불 조건: 전신환
공급 능력: 달 당 5000 PC
상세 제품 설명
기재: PET 레이어 총수: 2개의 층
Pcb 간격: 0.15mm PCB 사이즈: 90.81 X 20.33 밀리미터
커버레이: 노란 위 / 하얀 바닥 실크 스트린: 검정색
구리 중량: 1OZ 표면가공도: 침수 금
하이 라이트:

94-V0 Flexible PCB Board

,

Double Sided Flexible PCB Board

,

94-V0 Double Sided Flexible PCB



Double Sided Flexible PCB On Polyimide with Immersion Gold and 0.15mm Thick for Antennas

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of flexible printed circuit for the application of antenna. It’s a 2 layer FPC at 0.15mm thick. The base laminate is from Shengyi, White coverlay and yellow coverlay are applied separately on top side and bottom side. It’s fabricated per IPC 6012 Class 2 using supplied Gerber data.



Parameter and data sheet

Size of Flexible PCB 90.81 X 20.33mm
Number of Layers 2
Board Type Flexible PCB
Board Thickness 0.15mm
Board Material PET 25µm
Board Material Supplier Shengyi
Tg Value of Board Material 60

PTH Cu thickness 20 µm
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm

Coverlay Colour Yellow Top / White Bottom
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen Black
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90 No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25±125, 1000 cycles.
Thermal Stress Pass, 300±5,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2



94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 0

94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 1



Features and benefits

Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

Increased reliability

Controllability of electrical parameter design

The end can be whole soldered

Material optionality

Low cost

Continuity of processing

Competitive price

High technology



Applications

Mobile phone built-in antenna FPC industrial control audio equipment, medical keypad soft board



Components of a flexible circuit

A flexible circuit consists of copper foil, dielectric substrate+ coverlay and adhesive.

Copper foil is available in two different types of copper: ED Copper and RA copper.



ED copper is an electro-deposited (ED) copper foil produced in the same way as the copper foil used for rigid printed circuit boards. This also means that the copper is “treated”, i.e., it has a slightly rough surface on one side, which ensures a better adhesion when the copper foil is bonded to the base material.

RA copper is a rolled and annealed copper foil produced from electrolytically deposited cathode copper, which is melted and cast into ingots. The ingots are first hot-rolled to a certain size and milled on all surfaces. The copper is then cold-rolled and annealed, until the desired thickness is obtained.

Copper foil is available in thickness of 12, 18, 35 and 70 μm.



The most common available for dielectric substrate and coverlay is polyimide films. This material can also be used as coverlay. Polyimide is best suited for flexible circuits because of its characteristics as stated below:

1.High temperature resistance allows soldering operations without damaging the flexible circuits

2. Very good electrical properties

3. Good chemical resistance

Polyimide is available in thicknesses of 12.5, 20, 25 and 50 μm.



Base laminates for rigid printed circuit boards are copper foils laminated together with the base materials, the adhesive coming from the prepreg material during lamination. Contrary to this is the flexible circuit where the lamination of the copper foil to the film material is achieved by means of an adhesive system. It is necessary to distinguish between two main systems of adhesive, namely thermoplastic and thermoset adhesives. The choice is dictated partly by the processing, and partly by the application of the finished flexible circuit.


94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 2
94-V0 Double Sided Flexible PCB Board 0.15mm Thick For Antennas 3
