Rogers CLTE-XT PCB with 35μm Copper Layers and 0.129mm Core for High Frequency Applications in 63mm x 35mm Size
  • 이름

Rogers CLTE-XT PCB with 35μm Copper Layers and 0.129mm Core for High Frequency Applications in 63mm x 35mm Size

모크: 1pcs
가격: USD9.99-99.99
표준 포장: 진공 백+상자
배달 기간: 8-9 근무일
지불 방법: t/t
공급 능력: 한 달에 5000pc
세부 정보 정보
제품 설명
자세한 정보
원래 장소
중국
브랜드 이름
Bicheng
인증
UL, ISO9001, IATF16949
모델 번호
BIC-052.V1.0
기본 자료:
CLTE-XT
레이어 수:
2 층
PCB 두께:
0.25mm
PCB 크기:
63 mm x 35 mm (1 피스), +/- 0.15mm
구리 중량:
1oz (1.4 mils 또는 35μm에 해당)
표면 마감:
몰입 금
강조하다:

35μm Copper Layers Rogers PCB Board

,

0.129mm Core Rogers CLTE-XT PCB

,

63mm x 35mm Size High Frequency PCB

제품 설명
Rogers CLTE-XT 2-Layer PCB: 35μm Copper Layers, 0.129mm Core
Crafted with Rogers CLTE-XT laminate as its base material, this 2-layer rigid PCB is engineered to excel in high-frequency and temperature-sensitive applications. It features a compact footprint of 63mm x 35mm (1 piece) with a tight dimensional tolerance of +/- 0.15mm, striking a balance between miniaturization and reliability—ideal for space-constrained electronic setups where performance under demanding conditions is critical.
PCB Details
Construction Detail Specification
Base material CLTE-XT
Layer count 2-layer
Board dimensions 63 mm x 35 mm (1 piece), +/- 0.15mm
Minimum Trace/Space 5/6 mils
Minimum Hole Size 0.3mm
Blind vias No
Finished board thickness 0.25mm
Finished Cu weight Outer layers: 1 oz (1.4 mils)
Via plating thickness 20 μm
Surface finish Immersion gold
Silkscreen No
Solder Mask No
Quality assurance (prior to shipment) 100% Electrical test
PCB Stack-up
The 2-layer rigid PCB features a carefully optimized stackup:
Layer/Material Thickness Specification
Copper_layer_1 35 μm
Rogers CLTE-XT Core 0.129mm (5.1mil)
Copper_layer_2 35 μm
This stack-up leverages the unique properties of CLTE-XT to minimize signal loss and maintain stability across temperature variations.
Artwork, Standards, and Availability
  • Artwork Format: Gerber RS-274-X, a universally accepted standard for PCB manufacturing data, ensuring seamless production.
  • Quality Standard: Complies with IPC-Class-2, guaranteeing reliable performance and quality for general electronic applications.
  • Availability: Offered worldwide, making it accessible for global projects across various industries.

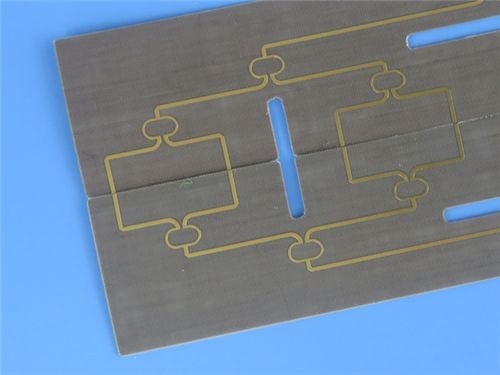

Rogers CLTE-XT PCB with 35μm Copper Layers and 0.129mm Core for High Frequency Applications in 63mm x 35mm Size 0
Introduction to Rogers CLTE-XT
Rogers CLTE-XT laminates are advanced composites designed to enhance loss tangent while delivering the lowest insertion loss and highest dimensional stability in their class. Building on the proven reliability of CLTE laminates, CLTE-XT maintains its properties over an even broader temperature range, making it ideal for high-frequency and temperature-sensitive applications.
Features of CLTE-XT
  • Dielectric Constant: 2.79 to 2.94 (varies by thickness) at 10GHz, 23°C @ 50% RH, ensuring consistent signal propagation.
  • Dissipation Factor: 0.0010 at 10GHz, 23°C @ 50% RH, minimizing signal loss for high-frequency performance.
  • Coefficient of Thermal Expansion (CTE): X axis 12.7 ppm/°C, Y axis 13.7 ppm/°C, Z axis 40.8 ppm/°C, ensuring dimensional stability across temperature fluctuations.
  • Decomposition Temperature (Td): 539°C, offering exceptional thermal resistance for harsh environments.
  • Thermal Coefficient of Dielectric Constant: -8 ppm/°C, maintaining dielectric stability with temperature changes.
  • Dielectric Constant Tolerance: +/- 0.03, the tightest in the CLTE family, ensuring consistent performance across production lots.
  • Moisture Absorption: 0.02%, resisting moisture-related degradation for long-term reliability.
Benefits of CLTE-XT
  • High Plated Through Hole Reliability: Ensuring durable connections between layers.
  • Repeatable Lot-to-Lot Performance: Consistent quality for large-scale production.
  • Reduced Circuit Losses: Without sacrificing dimensional stability, enhancing overall system efficiency.
  • Stable Dielectric Constant with Temperature: Reducing stress when attached to ceramic active devices, improving reliability in temperature-varying environments.
Typical Applications
This PCB, leveraging Rogers CLTE-XT, is well-suited for:
  • Advanced Driver Assistance Systems (ADAS)
  • Patch Antennas
  • Phased Array Antennas
  • Power Amplifiers
  • Ground-based and airborne communications and radar systems.
For inquiries regarding pricing, you can send your gerber file to our sales team at: sales10@bichengpcb.com. We serve clients worldwide and ensure prompt responses to all queries.
