폴리이미드 0.15 밀리미터 양면 배밀도 디스켓 플렉스 PCB 서피스 35 um Cu

Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu
Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu Polyimide 0.15mm Double Sided Flex PCB Surface 35um Cu

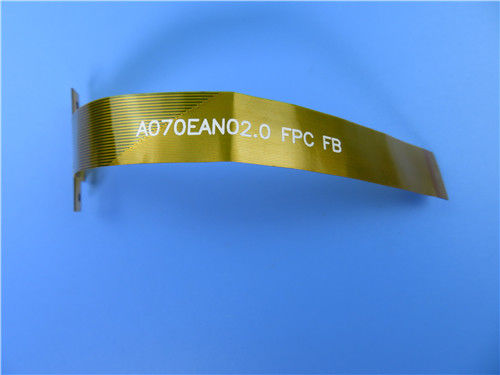

큰 이미지 :  폴리이미드 0.15 밀리미터 양면 배밀도 디스켓 플렉스 PCB 서피스 35 um Cu

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Bicheng
인증: UL, ISO9001, IATF16949
모델 번호: BIC-271.V1.0
결제 및 배송 조건:
최소 주문 수량: 1 PC
가격: USD9.99-99.99
포장 세부 사항: 진공 bags+Cartons
배달 시간: 8-9 작업 일
지불 조건: 전신환
공급 능력: 달 당 5000 PC
상세 제품 설명
기재: Polyimide 레이어 총수: 2개의 층
Pcb 간격: 0.15mm PCB 사이즈: 25.77 X 88.47 밀리미터
커버레이: 노랑 실크 스트린: 백색
구리 중량: 1OZ 표면가공도: 침수 금
하이 라이트:

측면을 댄 폴리이미드 두배는 PCB

,

0.15mm 양면 배밀도 디스켓 플렉스 PCB

,

0.15mm 연성 인쇄 회로를 구부립니다



Double Sided Flexible PCBs Built on Polyimide with 0.15mm thick and Immersion Gold for Display Backlight

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of flexible printed circuit for the application of GPS Tracking for Cars. It's a 2 layer FPC at 0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerber data.



Parameter and data sheet

Size of Flexible PCB 25.77 X 88.47mm
Number of Layers 2
Board Type Flexible PCB
Board Thickness 0.15mm
Board Material Polyimide 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material no
Stiffener Thickness N/A

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2



폴리이미드 0.15 밀리미터 양면 배밀도 디스켓 플렉스 PCB 서피스 35 um Cu 0

폴리이미드 0.15 밀리미터 양면 배밀도 디스켓 플렉스 PCB 서피스 35 um Cu 1



Features and benefits

A. Excellent flexibility

B. Reducing the volume

C. Weight reduction

D. Consistency of assembly

E. Increased reliability

F. Controllability of electrical parameter design

G. The end can be whole soldered

H. Material optionality

I. Low cost

J. Continuity of processing

K. On-time service

L. Delivery on time: >98%



Applications

Display backlight, Automobile sensor flex board, industrial control interphone



Structure of FPC

According to the number of layers of conductive copper foil, FPC can be divided into single layer circuit, double layer circuit, multi-layer circuit, double sided and so on.



Single-layer structure: the flexible circuit of this structure is the simplest structure of the flexible PCB. Usually the base material (dielectric substrates) + transparent rubber(adhesive) + copper foil is a set of purchased raw materials(semi-manufactures), the protective film and transparent glue are another kind of bought raw material. First, copper foil must be etched to obtain the required circuit, and the protective film should be drilled to reveal the corresponding pad. After cleaning, the two are combined by rolling. Then the exposed part of the pad electroplated gold or tin to protect. In this way, the big panel board will be ready. Generally also it’s stamped into the corresponding shape of the small circuit board. There is also no protective film directly on the copper foil, but printed resistance soldering coating, so that the cost will be lower, but the mechanical strength of the circuit board will become worse. Unless the strength requirement is not high and the price needs to be as low as possible, it is best to apply the protective film method.



Double layer structure: when the circuit is too complex to be wired, or copper foil is needed to shield the ground, it is necessary to choose a double layer or even a multilayer. The most typical difference between a multilayer and a single plate is the addition of a perforated structure to connect the layers of copper foil. The first process of transparent rubber + base material + copper foil is to make holes. Drill holes in the base material and copper foil first, clean and then plated with a certain thickness of copper. The subsequent fabrication process is almost the same as the single-layer circuit.



Double sided structure: both sides of the double sided FPC have pads, mainly used to connect other circuit boards. Although it and monolayer structure is similar, but the manufacturing process is very different. Its raw material is copper foil, protective film and transparent glue. The protective film should be drilled according to the position of the pad first, then the copper foil should be affixed, the pad and track lines should be etched and then the protective film of another drilled hole should be affixed.





폴리이미드 0.15 밀리미터 양면 배밀도 디스켓 플렉스 PCB 서피스 35 um Cu 2

폴리이미드 0.15 밀리미터 양면 배밀도 디스켓 플렉스 PCB 서피스 35 um Cu 3
