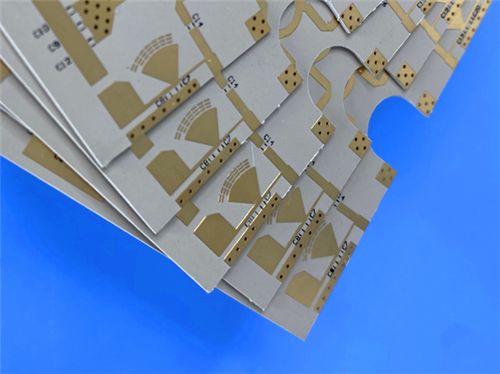

RT duroid 6006 PCB Rogers 10mil Laminate Black Silkscreen

This high-performance 2-layer PCB is constructed with Rogers RT/duroid 6006--a ceramic-PTFE composite engineered for electronic and microwave applications requiring high dielectric constant (Dk) and low loss. Designed to enable circuit size reduction while maintaining repeatable performance, it adheres to IPC-Class-2 standards and is optimized for X-band and below operations.

PCB Specification

Parameter	Details
Base Material	Rogers RT/duroid 6006 (ceramic-PTFE composite)
Layer Count	2-Layer rigid PCB
Board Dimensions	43mm x 107.5mm (1 piece)±0.15mm
Minimum Trace/Space	4/4 mils
Minimum Hole Size	0.2mm
Via Type	No blind vias (thru-hole vias only)
Finished Board Thickness	0.35mm
Finished Copper Weight (Outer Layers)	1oz (equivalent to 1.4 mils / 35 μm per layer)
Via Plating Thickness	20 μm
Surface Finish	Immersion Gold (enhanced conductivity, corrosion resistance)
Silkscreen	Top: Black; Bottom: No
Solder Mask	Top: No; Bottom: No
Quality Assurance	100% Electrical test prior to shipment

PCB Stack-up Details

Layer Type	Material/Description	Thickness
Copper Layer 1 (Outer)	Conductive electrodeposited copper (finished)	35 μm (1oz)
Dielectric Layer	Rogers RT/duroid 6006	0.254 mm (10 mils)
Copper Layer 2 (Outer)	Conductive electrodeposited copper (finished)	35 μm (1oz)

Material Overview: Rogers RT/duroid 6006

Rogers RT/duroid 6006 is a premium ceramic-PTFE composite laminate tailored for microwave and electronic circuits demanding high dielectric constant. Its unique formulation delivers low electrical loss, making it ideal for X-band and lower frequency applications, while tight control over Dk and thickness ensures consistent, repeatable circuit performance.

Key Material Features

Specification	Value
Material Type	Ceramic-PTFE composite
Dielectric Constant (Dk)	6.15 ± 0.15 at 10 GHz / 23°C
Dissipation Factor (tanδ)	0.0027 at 10 GHz / 23°C
Thermal Stability (Td, TGA)	>500 °C
Moisture Absorption	0.05%
Coefficient of Thermal Expansion (CTE) - X-axis	47 ppm/°C
Coefficient of Thermal Expansion (CTE) - Y-axis	34 ppm/°C
Coefficient of Thermal Expansion (CTE) - Z-axis	117 ppm/°C
Copper Foil Type	Standard/reverse treated electrodeposited
Flammability Rating	UL 94-V0
Lead-Free Compatibility	Yes

Core Benefits

Circuit Miniaturization: High Dk (6.15) enables significant reduction in board size without compromising performance.
Low Loss Performance: Ideal for X-band and below applications, ensuring efficient signal transmission with minimal attenuation.
Repeatable Reliability: Tight Dk and thickness control guarantees consistent performance across production runs.
Moisture Resilience: Low moisture absorption (0.05%) ensures stability in humid or harsh environments.
Manufacturing Flexibility: Compatible with lead-free processes and reliable for plated through-holes (supports multi-layer scalability).

Typical Applications

This PCB is engineered for high-reliability, space-constrained systems, including:

Patch Antennas
Satellite Communications Systems
Power Amplifiers
Aircraft Collision Avoidance Systems
Ground Radar Warning Systems

This RT duroid 6006 PCB is available worldwide. Contact us if you have any project requirement.
