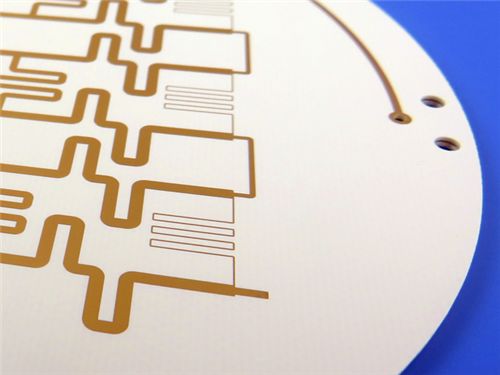

2-Layer Kappa 438 RF PCB Board with 53mm x 36mm Dimensions and UL 94 V-0 Flame Rating

모크:	1pcs
가격:	USD9.99-99.99
표준 포장:	진공 백+상자
배달 기간:	8-9 근무일
지불 방법:	t/t
공급 능력:	한 달에 5000pc

세부 정보 정보

제품 설명

자세한 정보

원래 장소

브랜드 이름

Bicheng

UL, ISO9001, IATF16949

모델 번호

BIC-052.V1.0

기본 자료:

카파 438

레이어 수:

PCB 두께:

1.6mm

PCB 크기:

53mm x 36mm (± 0.15mm)

구리 중량:

1oz (1.4 mils)

표면 마감:

강조하다:

53mm x 36mm RF PCB Board

UL 94 V-0 Flame Rating PCB

Dielectric Constant 4.38 Printed Circuit Board

제품 설명

2-Layer Kappa 438 PCB 1.6mm Thickness 1oz Cu, ENIG Finish

This 2-layer PCB uses high-performance Rogers Kappa 438 as its base material. It's a top-notch electronic part that mixes precise engineering with great functionality. Measuring 53mm x 36mm (±0.15mm), this PCB stands out in many uses because of its base material's unique traits, making it a solid pick for tough electronic projects.

Rogers Kappa 438 is a glass reinforced hydrocarbon ceramic system made for PCB substrates. It delivers excellent high-frequency performance and allows low-cost circuit production. As a low-loss material, it works with standard FR-4 processes. It has a UL 94 V-0 flame rating, works with lead-free soldering, and comes in standard thicknesses: 10, 20, 30, 40, 60 mil. Its dielectric constant (Dk) matches FR-4 norms, making it easy to upgrade existing FR-4 designs for better electrical performance.

PCB Details

Parameter	Specification
Layer Count	2 layers
Board Dimensions	53mm x 36mm (±0.15mm), 1 piece
Minimum Trace/Space	4/4 mils, letting dense, complex circuits fit in small spaces without hurting signal quality
Minimum Hole Size	0.3mm, fitting small parts like tiny connectors and precision resistors
Blind Vias	None, simplifying manufacturing and cutting costs while keeping connections reliable
Finished Thickness	1.6mm, balancing sturdiness and practicality for space-limited uses
Outer Cu Weight	1oz (1.4 mils), ensuring good conductivity for moderate currents
Via Plating	20μm thick, boosting interlayer connection durability against thermal and mechanical stress
Surface Finish	ENIG (Electroless Nickel and Immersion Gold), offering great corrosion resistance and solderability for consistent joints and long life
Silkscreen	Black on top (easy part ID), none on bottom (simpler layout, lower cost)
Solder Mask	None on top or bottom, possibly for specific design needs
Electrical Test	100% checked before shipping (short circuits, open circuits, impedance) to guarantee function

PCB Stack-up

Layer	Material/Component	Thickness
Copper_layer_1	Copper	35 μm
Core	Rogers Kappa 438	1.524 mm (60mil)
Copper_layer_2	Copper	35 μm

Artwork

The manufacturing artwork is provided in Gerber RS-274-X format, a universally accepted industry standard. This ensures seamless integration with nearly all PCB fabrication setups, minimizing compatibility issues during production.

Quality Standard

Adheres to the IPC-Class-2 standard, a benchmark that ensures reliable performance across general electronic applications.

Availability

Offered worldwide. No matter your location, you can easily access this PCB to meet your project needs.

Kappa 438 Features

Glass reinforced hydrocarbon thermoset base: This structure combines glass reinforcement for mechanical strength with a hydrocarbon thermoset matrix, striking a balance between durability and electrical performance, making it robust enough for various application environments.
Dk of 4.38 (matches FR-4 norms for easy design conversion): The dielectric constant aligns with FR-4 standards, allowing designers to seamlessly transition existing FR-4 layouts to Kappa 438 without major overhauls, streamlining the upgrade process.
Tighter Dk and thickness tolerance than FR-4 (more consistent performance): Compared to FR-4, its stricter tolerances mean less variation in dielectric properties and thickness across the board, ensuring signals behave predictably and circuits perform uniformly.
Low Z-axis CTE (42 ppm/ °C, good thermal stability): A low coefficient of thermal expansion in the Z-axis minimizes warping or delamination when exposed to temperature changes, enhancing the PCB's reliability in thermal cycling conditions.
High Tg ( >280°C TMA, stable at high temps): With a glass transition temperature above 280°C, it maintains its structural and electrical integrity even in high-temperature environments, suitable for applications with intense heat.
Thermal coefficient of Dk (-21 ppm/ °C from -50°C to 150°C, stable dielectric properties): The small change in dielectric constant over a wide temperature range ensures consistent signal transmission, critical for maintaining performance in fluctuating thermal conditions.
UL 94-V0 rated (flame retardant): Meets the UL 94 V0 standard, self-extinguishing quickly to prevent fire spread, adding a layer of safety in applications where fire risk is a concern.

Benefits

Easy to manufacture and assemble like FR-4 (lower complexity and cost): Compatible with standard FR-4 manufacturing and assembly processes, eliminating the need for specialized equipment or training, thus reducing production complexity and associated costs.
Simple to upgrade FR-4 designs for better performance (saves time and resources): Its similar properties to FR-4 allow straightforward conversion of existing designs, avoiding the need for full redesigns and saving valuable time and development resources.
Consistent circuit performance (reliable operation): Tighter tolerances and stable material properties translate to consistent circuit behavior, reducing the risk of performance variations and ensuring reliable operation in end products.
More design flexibility and better plated through-hole reliability (higher quality): Offers greater flexibility in design choices while improved plated through-hole reliability enhances the PCB's overall quality and longevity, even in demanding use cases.
Works with automated assembly (faster production): Compatible with automated assembly lines, enabling high-speed production and increasing manufacturing efficiency to meet large-scale demand.

Applications

Carrier Grade WiFi/LAA (stable high-performance wireless)
Small Cell and DAS (better signal coverage)
V2X Communications (reliable automotive links)
IoT (Smart Home, Wireless Meters - efficient data transmission)

In short, this PCB pairs Kappa 438's unique properties with precise engineering. It's reliable and efficient for many uses, making it a top choice for engineers and manufacturers needing a dependable PCB.
